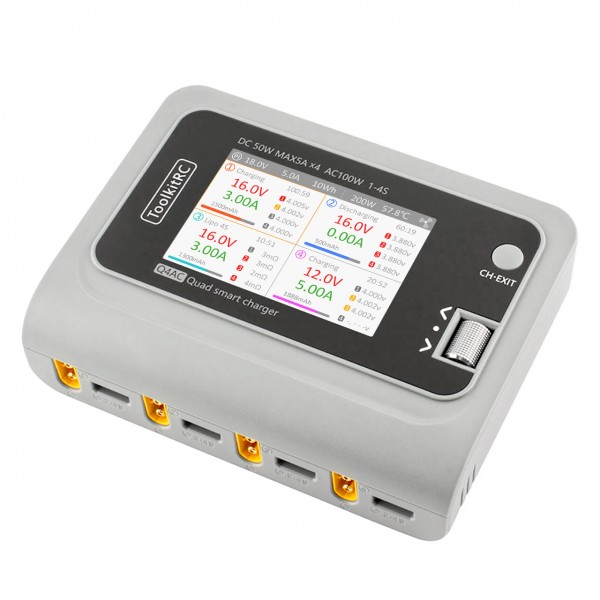

TOOLKIT Caricatore Q4AC LiPo 1-4S 5A Quad AC/DC (TK12000)

99,90 € 104,90 € Risparmia 5,00 €
Tasse incluse
Quantità
Disponibile

The Q4AC is a four-channel charger with balancer function and IPS display. Menu navigation via the roller makes operation simple and straightforward.

Features:

  • Max. 50W charging power on all four channels and a maximum of 5A charging current
  • Max. 5W discharge power per channel at around 2A
  • Adjustable cut-off voltage for lithium batteries
  • Store 5 battery information and 3 power supply information for faster handling
  • Multilingual user interface
  • Firmware upgrade via USB
Technical Specifications:
Input Voltage: AC: 100-240V @max. 1.5A
DC: 10-18V @max. 20A
Charging Power: DC: 0.1-5A @50Wx4
AC: 0.1-5A @50Wx2
AC: 0.1-5A @25Wx4
Discharging Power: 0.1-2A @5Wx4
Charging Accuracy: <0.005V
Balance Current: 240mA @2-4S
Cells: LiPo/LiFe/LiIon/LiHV 1-4S
Cells: NiMH/NiCd 1-10S
Pb Battery Voltage: 1-8S
Voltage: 1.0V-5.0V @1-4S
Display: IPS 3.5'' 480x320px
Dimensions: 150x112x36.5mm
Weight: 450g

Delivery:

1x Q4AC Charger
1x Power cable
1x USB cable
1x Display protection
1x Manual
