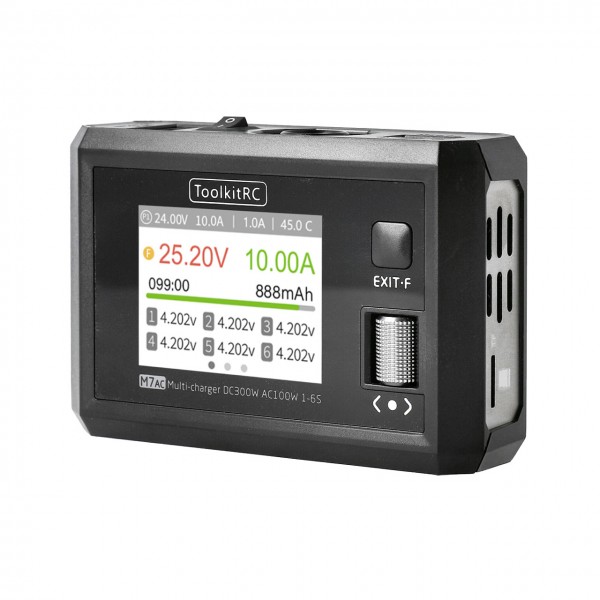

TOOLKIT Caricatore M7AC LiPo 1-6S 15A AC/DC (TK12200)

94,90 € 104,90 € Risparmia 10,00 €

Tasse incluse

Quantità

Prenotabile

Descrizione

The M7AC is a charger with a variety of different functions such as balance charging and discharging. However, it can be used precisely as a signal measuring device or directly as a signal source.

Features:

Up to 300W charging power and maximum 15A charging current
Max. 300W discharge power
Multifunction device
- Charger
- Meter for voltage, resistance, PWM/PPM/SBUS signals
- Playback of PWM/PPM/SBUS signals
- Multilingual user interface including voice output
Upgradeable via USB
Various security controls

Technical Specifications:

Input Voltage:	AC 100-240V, max. 100W DC 7-35V, max. 20A
Charge Power:	0.1-15A @300W
Discharge Power:	0.1-15A @300W (Rec/Ext. Mode) 0.1-3A @15W (Intern. Mode)
Charging Accuracy:	<0.005V
USB A:	5.0V@10W (or Upgrade)
Balance Current:	800mA @4.2V
Cells LiPo/LiFe/LiIon/LiHV	1-6S
Cells: NiMH/NiCd	1-16S
Pb Battery Voltage:	1-10S
Voltage:	1.0V-5.0V @1-6S
Display:	IPS 2.4'' 320x240px LCD
TF Card:	Supports 128MB to 16GB
Dimensions:	112x73x38mm
Weight:	245g

Measurement & Output:

Messung	PWM	880us-2200us @20-400hz
	PPM	880us-2200us*8 CH @20-50hz
	SBUS	880us-2200us*16 CH @20-100hz
Output	PWM	500us-2500us @20-1000hz
	PPM	880us-2200us*8 CH @50hz
	SBUS	880us-2200us*16 CH @74hz
	Power	0.5-15A @1-28V, Modus: CC+CV
