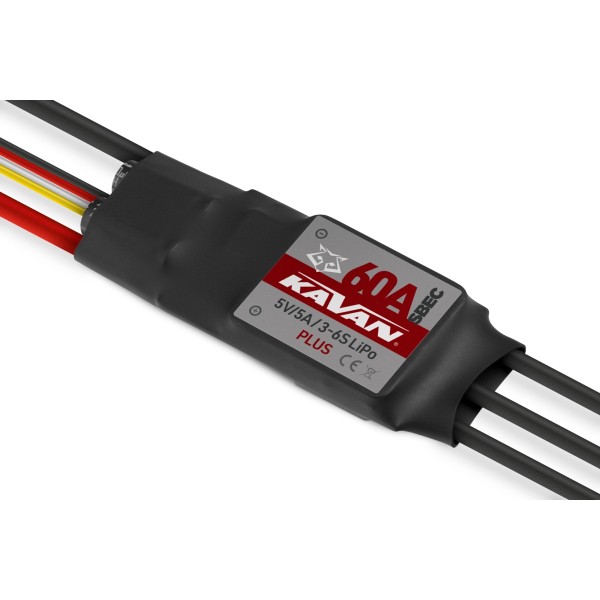

KAVAN Regolatore ESC R-60SB Plus fino 6S LiPo (KAV32.42023)

New version of the basic KAVAN ESC line with enhanced programming capabilities for model aeroplanes.

Continuous current 60A, peak current 80A.
Switched UBEC 5V/7A.
Input voltage 3-6S LiPo.
Weight 68g.
Dimensions 73x20x12mm.

PROGRAMMABLE FUNCTIONS

• Brake Type: Normal brake off, Normal brake on (3 brake force levels selectable), Reverse brake (the forward/reverse run is selected by an auxiliary channel with 2-position switch on your transmitter, the revolutions are controlled by the throttle stick, Linear reverse brake (the reverse revolutions are controlled by a proportional control assigned to an auxiliary channel on your transmitter)
• Brake Force: Brake force adjustable to 60%/90%/100% (Normal brake mode only).
• Voltage Cut-off Type: Soft Cut-off: After selected this option, the ESC will gradually reduce the output to 60% of the full power in 3 seconds after the low-voltage cut-off protection is activated. Hard Cut-off: The ESC will immediately cut off the output.
• LiPo Cells: The ESC will automatically calculate the number of LiPo cells you have plugged in as per the “3.7V/Cell” rule if “Auto Calc.” is selected, or you can set this item manually.
• Cut-off Voltage: If set off, the low-voltage protection function is disabled. If on, the protection voltage threshold is selectable at 2.8V/cell, 3.0V/cell or 3.4V/cell.
• Start-up Mode: This is used to adjust the throttle response time of ESC acceleration from 0% to 100%. Normal/Soft/Very Soft correspond to approximately 200 ms/500 ms/800 ms respectively.
• Timing: Adjustable to 5°/15°/25°.
• Active Freewheeling (DEO): This item is adjustable between “Enabled” and “Disabled”, and it is enabled by default. With it enabled, you can have better throttle linearity or smoother throttle response.
• Search Mode: After selected this option, ESC will drive the motor chirping prompt when the throttle is kept at 0% and continues to do during the set time.

PROTECTIVE FUNCTIONS

• Start-up Protection: The ESC will monitor the motor speed during the start-up process. When the speed stops increasing or the speed increase is not stable, the ESC will take it as a start-up failure. At that time, if the throttle amount is less than 15%, the ESC will try to restart automatically; if it is larger than 20%, you need to move the throttle stick back to the bottom position first and then restart the ESC.
• ESC Thermal Protection: The ESC will gradually reduce the output to 60% but won’t cut it off when the ESC temperature goes above 120°C (soft cut-off mode)/the ESC will shut the motor off (hard cut-off mode).
• Throttle Signal Loss Protection: When the ESC detects loss of signal for over 0.25 second, it will cut off the output immediately. The ESC will resume the corresponding output after normal signals are received.
• Overload Protection: The ESC will cut off the power/output or automatically restart itself when the load suddenly increases to a very high value.
• Low Voltage protection: When the battery voltage is lower than the cut-off voltage set by the ESC, the ESC will trigger the low-voltage protection. If the battery voltage is set to soft cut-off, the battery voltage will be reduced to a maximum of 60% of the full power. When set to hard cut-off, the output is cut-off immediately.
• Abnormal input voltage protection: When the battery voltage is not within the input voltage range supported by the ESC, the ESC will trigger the Abnormal input voltage protection, ESC will drive the motor to sound the alarm.
