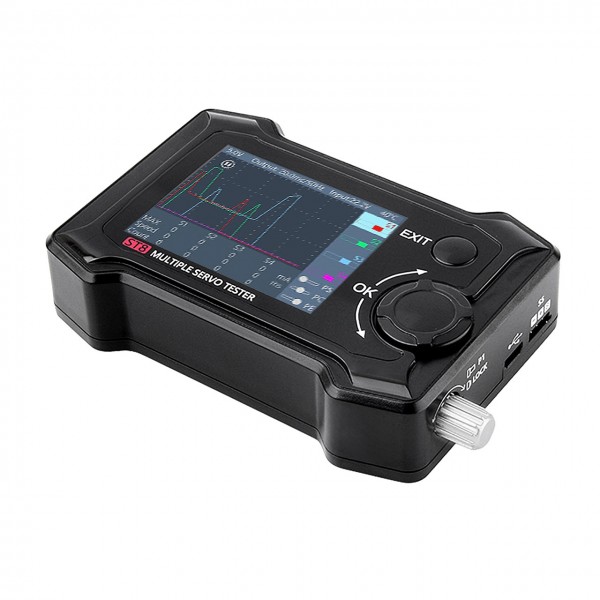

TOOLKIT ST8 Advanced servo tester (TK30500)

59,90 € 63,90 € Risparmia 4,00 €

Tasse incluse

Quantità

Prenotabile

Descrizione

The ST8 Servo Tester visually displays the performance data of servos. It is a true multifunction device with up to 28V output voltage, 8-channel signal output, integrated current measurement, data display as a graph, and many other functions.

Features:

4 channels for programmable independent signals
8 channels as signal outputs
A variety of measurement modes (speed, count, steps, linear)
External input signal support for PWM, PPM, and SBUS signals
Measurement accuracy down to the millisecond.

Technical Specifications:

Input Voltage:	7.0-28.0V, max. 10A
Main Output Port:	5.0-28.0V, max. 10A
Signal Port:	5.0V-8.4V, max. 4A/S1-S4
Output Voltage:	5.0V-8.4V, max. 4A/S4 Ext.
Output Signal:	100us-2900us, 33-1000Hz, S1-S4 PWM 500us-2500us, S5 PPM 8CH, S5 SBUS 16CH, S5
P1 Rotation Range:	1000us-2000us, P1
Micro-USB:	Upgrade, USB3.0
Display:	LCD, 2.4'' TFT RGB 320x240px
Dimensions:	99x68x26mm
Weight:	120g
